All Components for massage tubs: everything you need to know about massage systems
- Share
- Issue Time
- Feb 26,2025
Summary
Understand how massage bathtub systems combine pumps, suction fittings, water jets, plumbing, air controls, and air bubble circuits, with practical component-matching checks for B2B projects.
A massage bathtub system is more than a set of jets. A working water massage circuit requires a compatible pump, suction fitting, jets, hoses, and fittings. If the system mixes air into the water stream, it may also include an air control. An air push button and its matching control device can be used to start and stop the pump.
For bathtub brands, manufacturers, and project buyers, the main question is not whether each part works on its own. The interfaces, flow requirements, plumbing layout, and controls must work together as one system. This guide explains the role of each component, the main massage system types, and the information buyers should confirm before selecting parts.
What Are the Core Components of a Massage Bathtub System?

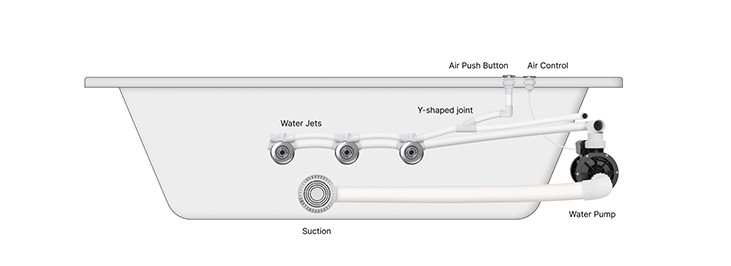

A basic water massage circuit normally includes a pump, suction fitting, water jets, hoses, and fittings. Depending on the control requirements, it may also include an air push button and an air control. Each part has a different job, and the complete circuit must move water through intake, pressurization, distribution, discharge, and return.

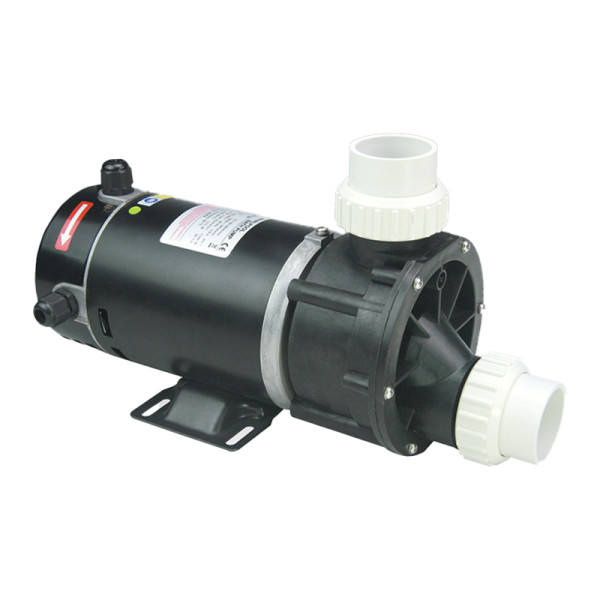

Water Pump: Providing Power for Water Circulation
The water pump draws water from the bathtub, pressurizes it, and sends it to the jets. Pump selection should not be based on power alone. Buyers also need to consider the number and structure of the jets, required flow, plumbing length, number of elbows, and connection sizes.
A higher-powered pump does not automatically create a better massage. If the pump does not match the rest of the system, the jets may receive uneven flow, noise may increase, or the system may not operate as intended.

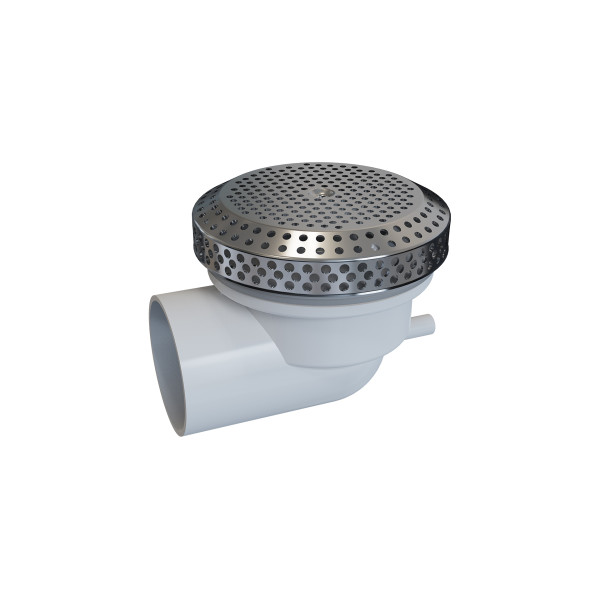

Suction Fitting: Returning Bathtub Water to the Circuit
The suction fitting is the return inlet for the water circulation circuit. Its main function is to direct bathtub water toward the pump, not to serve as the system's primary filter. Its flow capacity, inlet protection, and compatibility with the pump and plumbing should be confirmed during system design.

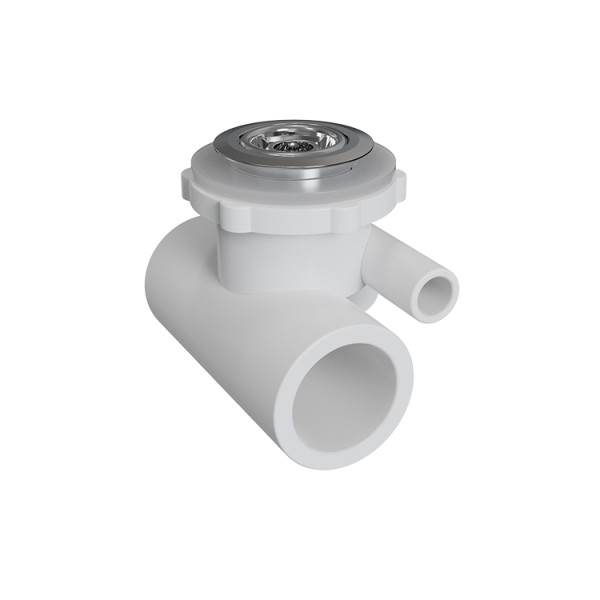

Water Jets: Directing the Water Flow
Water jets return pressurized water to the bathtub. Jet designs may differ in discharge direction, coverage, adjustability, and connection structure. Buyers should confirm that the jet body, jet housing, connectors, and plumbing work together instead of comparing appearance alone.
Some water jets allow air to enter the water stream through a Venturi effect. In this type of design, the water connection, air connection, and air tubing must all be checked. The jet cannot be treated as a single-connection component.
Hoses, Elbows, Tees, and Fittings: Building the Water Circuit
Hoses and fittings connect the pump, suction fitting, and jets while routing the circuit through the available space inside the bathtub. Selection should cover connection specifications, joining methods, plumbing space, and sealing points. One incompatible connection can affect assembly and system testing.

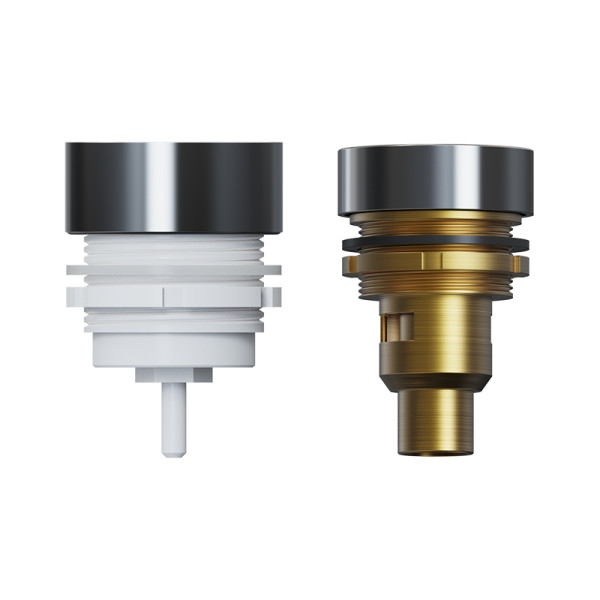

Air Push Button and Air Control: Separate Start and Air-Adjustment Functions
An air push button sends a pneumatic pressure signal to a matching control device to start or stop the pump. The button does not inject air into the jets, and it is not the same component as an air control.
An air control changes the amount of air entering the jet's air line, which affects the feel of the aerated water stream. The two parts are easy to confuse by name, but their functions and installation positions are different.
How Does the Pump Deliver Water to the Jets?
During operation, bathtub water enters the circuit through the suction fitting. The pump pressurizes the water and sends it into the main line. Branch lines then distribute the water to individual jets, which return it to the bathtub and complete the circulation loop.
Even flow at each jet depends on more than the pump. Plumbing length, elbows and tees, branch layout, jet passages, and connection sizes all affect system performance. For B2B projects, it is more practical to match a complete system diagram and component list than to choose a pump first and source the remaining parts later.
For a closer look at pump selection, read our professional bathtub water pump guide for B2B buyers.
Why Does a Massage System Need an Air Control?
When a jet is designed for air mixing, fast-moving water creates suction inside the jet and draws outside air into the water stream. The air control changes the opening of the air passage and regulates how much air enters the flow.
More air generally makes the aerated character of the water stream more noticeable, while less air produces a more concentrated water flow. The final effect also depends on the jet design, water pressure, air-line length, and installation position, so the air control should be evaluated as part of the complete circuit.
Water jets and air jets belong to different systems. See our guide to air jets versus water jets for a comparison of their working principles and applications.
What Are the Main Types of Massage Systems?
From a component and circuit perspective, common bathtub options include water massage systems, air bubble systems, and combined water-and-air systems. The terms "hydro massage" and "whirlpool massage" are not used consistently in every market. Project discussions should therefore focus on the actual components and circuit design rather than the marketing name alone.
Water Massage System
A water massage system uses a pump to circulate bathtub water and discharge it through water jets. Jet position, direction, and water distribution determine the primary massage areas. Some water jets can also mix air into the stream to change how the flow feels.
Air Bubble System
An air bubble system uses a blower to move air through air tubing and release it through air jets. Its power equipment, plumbing, and jets differ from those in a water massage system. Water pumps, blowers, water jets, and air jets should not be treated as interchangeable components. For the complete air circuit, read our guide to bathtub air massage system components.
Combined Water-and-Air System
A combined system can place water massage and air bubble functions in the same bathtub. However, the two circuits normally require separate power equipment, plumbing, jets, and control arrangements. Whether both systems can run at the same time depends on the control plan and the complete bathtub design.
| System Type | Main Power Equipment | Main Outlet Components | Project Checks |
|---|---|---|---|
| Water massage system | Water pump | Water jets | Flow, plumbing distribution, jet and connection compatibility |
| Air bubble system | Air blower | Air jets | Air distribution, backflow prevention, plumbing and jet compatibility |
| Combined water-and-air system | Water pump and air blower | Water jets and air jets | Two separate circuits, control logic, and installation space |
Can One Bathtub Use Multiple Massage Systems?
Yes, but the combined solution should be designed around the bathtub structure and the complete system. Water massage, air bubbles, lighting, and other functions can coexist, but each function needs defined components, connections, electrical controls, and installation space.
Before sampling or bulk purchasing, confirm the bathtub dimensions and internal space, jet layout, required functions, available electrical conditions, control method, and maintenance access. The supplier can then prepare a system diagram and bill of materials. This reduces the risk of buying individually usable parts that cannot be assembled into a working bathtub.
What Should B2B Buyers Confirm Before Selection?
When sourcing a complete massage system, start with a system requirement sheet rather than a photo of one component. The following information directly affects component matching:
- Massage method: Water massage, air bubbles, or a combination of both.
- Jet layout: Jet types, quantities, installation positions, and intended coverage areas.
- Plumbing conditions: Main and branch line routing, connection methods, and available installation space.
- Control method: Independent start and stop, air adjustment, or combined control with other functions.
- Connection information: Actual interface details for the pump, suction fitting, jets, hoses, and fittings.
- Project stage: Concept design, sample development, replacement of an existing system, or bulk production.
For replacement projects, also provide photos of the existing components, close-ups of the connections, label information, and dimensions of the available installation space. A product name alone is usually not enough to confirm compatibility.
Four Key Takeaways
- A massage bathtub is a complete system: The pump, suction fitting, jets, and plumbing must be matched as one circuit.
- An air push button does not supply air to the jets: It sends a start-and-stop signal, while the air control regulates air intake.
- System names are not enough: "Hydro massage" and "whirlpool massage" may describe similar arrangements in different markets, so buyers should verify the actual components.
- Prepare system information before purchasing: Clear jet layouts, connections, plumbing, controls, and project-stage details improve matching efficiency.
Looking Ahead: From Individual Parts to Complete System Matching
As massage bathtubs add more functions, component compatibility and system coordination become more important than the specifications of any single part. For brands, manufacturers, and project buyers, a clear system diagram, bill of materials, and test requirements can help identify connection, flow, and control issues during sample development.
Hydrorelax can review an existing bathtub structure, target functions, and available component information to help organize the water massage system and its matching requirements. The final solution should always be based on the project's confirmed dimensions, connections, and operating requirements.
Send us the bathtub structure, jet layout, existing component photos, and connection details. We can use this information to discuss matching directions for the pump, jets, suction fitting, plumbing, and control components.
Contact UsFrequently Asked Questions About Massage Bathtub Systems
No. A basic water massage circuit also needs a suction fitting, hoses, fittings, and suitable start-and-stop control. If the jets mix air into the water, the system also needs the corresponding air tubing and air control.
No. The result depends on how well the pump matches the jets, plumbing, connections, and water distribution. Increasing pump power does not replace a complete system calculation.
Its main function is to direct bathtub water into the circulation circuit and toward the pump. It should not be described as the system's primary filter. Any separate filtration function depends on the complete bathtub configuration.
An air push button sends a pneumatic pressure signal to a matching control device to start or stop the pump. An air control changes the amount of air entering the jet's air line. The two components perform different functions.
Yes, but the water circuit, air circuit, power equipment, and controls should be designed separately. The bathtub must also provide enough installation and maintenance space.
