This blog will give a clear guide on: the difference between metric and imperial sizes, common standards for bathtub components, the meaning of common technical abbreviations, and tips for quickly reading product specs
For buyers who are doing bulk purchases or looking for long-term suppliers, understanding bathtub component sizing is a key step before entering negotiations.
This blog will give a clear guide on: the difference between metric and imperial sizes, common standards for bathtub components, the meaning of common technical abbreviations, and tips for quickly reading product specs, helping buyers quickly build a basic understanding of size logic.
Risks Caused by Unclear Sizing Standards
In bathtub system component sourcing, sizing standards are often overlooked, but ignoring them can quickly increase communication overhead and purchasing risks.
Many buyers searching for bathtub parts, water jets, manifolds, air hoses, or suction fittings notice that products labeled 1", 1.5", or 2" often don't measure exactly the same.
These differences aren't necessarily product defects, they usually stem from different countries' pipe sizing systems and standards.
Failing to identify the correct sizing system during sourcing can lead to:
1.Parts that don't fit the existing piping system
2.Sealing issues during installation
3.Specs that aren't interchangeable between suppliers
4.Extended project installation timelines
Understanding the relevant industry standards can help avoid these problems.
Metric vs Imperial Plumbing Standards
What is Metric and What is Imperial?
In the global plumbing and spa industry, two main sizing systems are used.
Metric system
The metric system uses millimeters (mm). It is widely used in Europe, China, and most Asian countries.
Examples include:
20 mm、25 mm、50 mm
Imperial system
The imperial system uses inches. It is mainly used in North America and some Commonwealth countries.
Examples include:
1/2 inch、3/4 inch、1 inch、2 inch
In the spa and bathtub accessory industry, most international brands still use inch measurements, even when the products are manufactured in Asia.
Regions that Mainly Use the Metric System
These typically include:
China, Russia, the Netherlands, Hungary, and most European countries.
In these regions, millimeters (mm) are the standard unit used in industrial manufacturing.
Regions that Mainly Use the Imperial System
These include:
The United States, Canada, the United Kingdom, the Middle East, and Ukraine.
In these markets, spa and bathtub systems still widely use inch measurements.
This is why many Asian manufacturers mark bathtub components with both inch and mm measurements.
Common International Standards Used for Spa & Bathtub Plumbings
In plumbing systems, different countries often follow different standards.
Below are several common standards used for bathtub and spa components.
Specific Standards
AS/NZS 1477
This is a plastic pipe standard used in Australia and New Zealand. It mainly applies to PVC pressure piping systems.
In spa and bathtub systems, some pipe fittings and connection sizes may follow this standard.
ASTM Standard
ASTM refers to standards developed by the American Society for Testing and Materials. These standards are widely used in the North American spa industry.
Examples include:
PVC pipe dimensions
Pressure ratings
Material requirements
Widely Used Standards
BSP (British Standard Pipe)
BSP is a British pipe thread standard commonly used in Europe and some Commonwealth countries.
The thread angle is different from the US standard, so extra attention is needed when sourcing across regions.
NPS (National Pipe Straight)
NPS is one of the common pipe sizing systems used in the United States. It is often used to describe the nominal size of a pipe.
It is important to know that NPS size is not the same as the actual outside diameter.
For example:
A 1 inch NPS pipe usually has an outside diameter larger than 25.4 mm.
Common Spa and Bathtub Parts Terminology Buyers Often Confuse
In massage bathtub component specifications, many abbreviations are commonly used.
If buyers are not familiar with these terms, it is easy to misunderstand the product structure.
Below are some common technical abbreviations.
S – Slip
The pipe is inserted directly into the fitting and sealed with glue.
SP – Spigot
A male connection that fits into a slip socket.
RB – Ribbed Barb
A ribbed hose fitting, usually used for flexible hose connections.
SB – Smooth Barb
A smooth hose fitting without ribs.
OD – Outside Diameter
The outside diameter of the part.
How to Read Water Jet and Manifold Specifications
For buyers, understanding product specification sheets is very important.
The following two examples show how to read typical parameters.

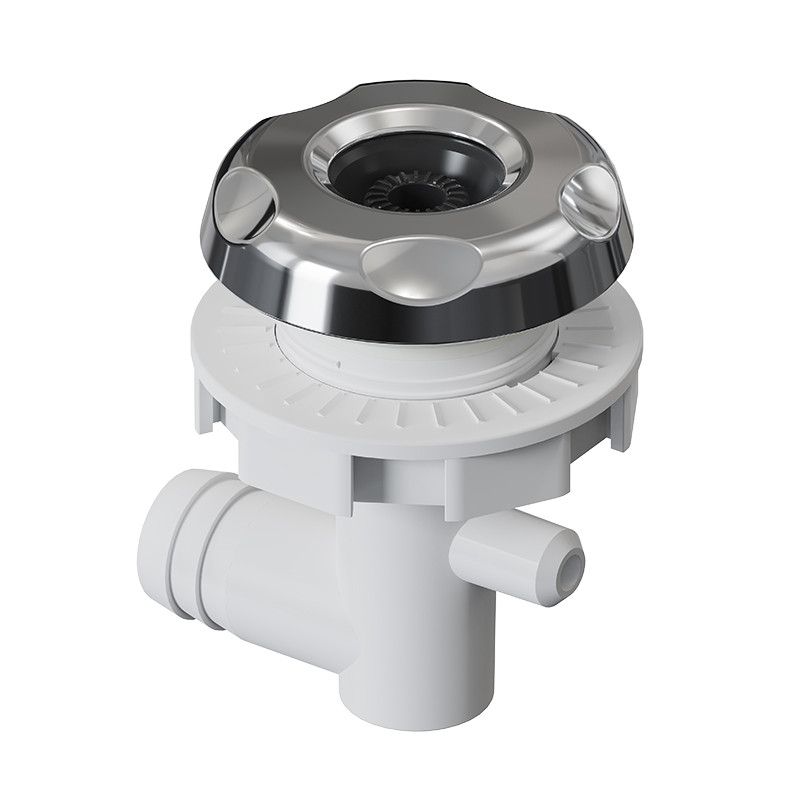

Example 1: Water Jet Specification
Specification:
2.25" hand adjustable
3/4" RB x 3/8" RB body
This can be understood as:
The jet face diameter is 2.25 inches
The water flow can be manually adjusted
The jet body has two ribbed barb connections
One 3/4 inch RB
One 3/8 inch RB
This structure is commonly used to connect:
The main water pipe
The air line

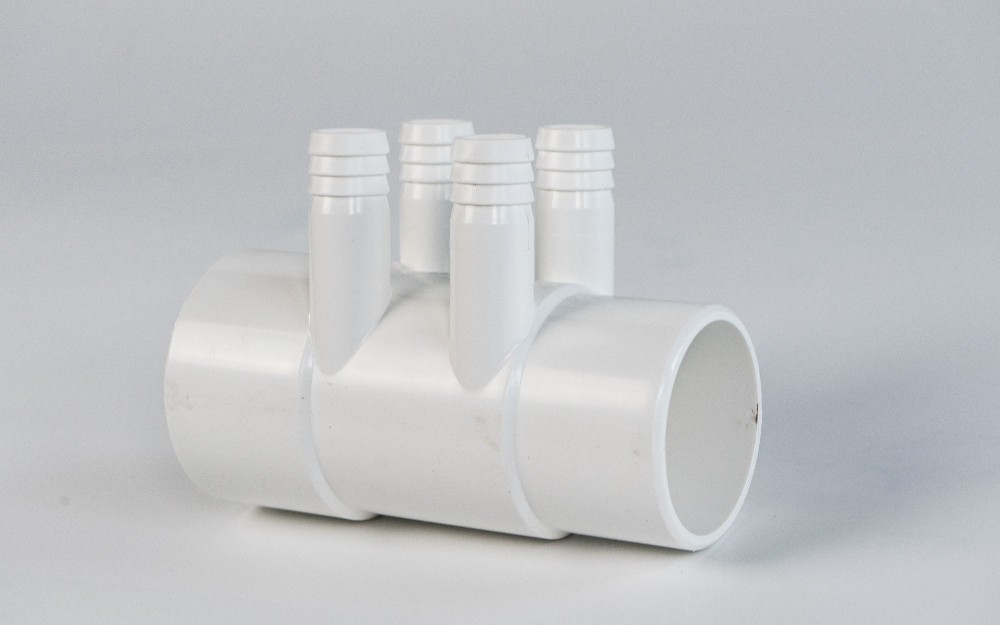

Example 2: Water Manifold
2" SP x 2" S (4) 3/4" Barbs
This means:
Inlet connection: 2 inch Spigot
Outlet connection: 2 inch Slip
Number of branches: 4
Each branch has a 3/4 inch barb fitting
This type of manifold is usually used to distribute the main water flow to multiple jets.
Need Help Identifying Spa & Bathtub Parts Dimensions?
Even experienced buyers may run into inconsistent spec descriptions when dealing with different suppliers.
For example:
The same nominal size may have different connection structures
The nominal size may not match the actual measured size
If you encounter unclear parameters in drawings or specifications, the best approach is to provide:
1.Product photos
2.Measured dimensions
3.Photos of the existing system
Professional suppliers can usually identify the required parts quickly based on this information.
Spa and bathtub parts suppliers like Hydrorelax often assist clients with size matching and component identification when working on international projects. This helps buyers avoid sourcing mistakes.
FAQ About Bathtub and Spa Parts Dimensions
1. What does "Barb"mean in product specifications?
Barb refers to a hose barb fitting used to connect flexible hoses.
The ribbed structure helps grip the hose after insertion, reducing the risk of the hose slipping off.
2. Why do different suppliers label sizes differently?
Common reasons include:
Different national standards
Different manufacturing practices
Different mold designs
For this reason, it is very important to confirm OD, ID, and connection structure before placing bulk orders.
3. How can buyers avoid purchasing incompatible bathtub parts?
Before placing an order, it is recommended to confirm:
Pipe standard (Metric or Imperial)
Connection type (Slip, Spigot, or Barb)
Actual outside diameter
4. Is Hydrorelax a factory or a trading company?
Hydrorelax is an integrated manufacturer and supplier of spa and bathtub components, with 25 years of experience in whirlpool system manufacturing.
Hydrorelax Final Words
In bathtub and spa component sourcing, accurate identification of size standards is essential. Differences between metric and imperial systems, as well as the use of different standards, can affect the compatibility of parts.
By understanding common size conversion methods, technical abbreviations, and how to read specification sheets, buyers can identify and select the right parts more efficiently. This helps avoid sourcing mistakes, saves time, and ensures smooth installation.
