Spa Hose FAQs: Size Guide & Troubleshooting

Even with good hoses and proper setup, problems can still show up over time. Here are some common hot tub pipe issues and tips to fix them. Let's go!

Hot Tub Plumbing Standards

First thing to know: The dimensions of SPA piping refer to its "nominal diameter" and not to the actual inside or outside diameter. This is because piping systems are standardized to ensure compatibility, not absolute geometric consistency.

1.NPS (Nominal Pipe Size)

Used mainly in North America, measured in inches. For example, we often refer to a 2" pipe as having a nominal diameter of 2 inches, but its actual outside diameter (OD) may be fixed (e.g, 2.375 inches) while the inside diameter (ID) varies according to the thickness of the pipe wall (Schedule).

2.DN (Diameter Nominal)

This is the metric version used by ISO, which is more common in Europe and many other places. It's measured in millimeters.

How to Measure Hot Tub Pipes?

You only need one thing: outer diameter (OD). Most reliable.

This is the best way, since wall thickness doesn't affect it.

1.Tools: Use a caliper (best) or a tape measure.

2.Where to measure: Clean the spa pipe end first, and make sure no chips or cracks.

3.Measure: Place the caliper or tape across the outside edge.

4.Match size: Compare your result with the chart below to find the right NPS or DN size.

OD you measure	Closest NPS size	DN size
~34.9 mm / 1.375"	1 inch	DN 25
~41.1 mm / 1.625"	1¼ inch	DN 32
~47.8 mm / 1.875"	1½ inch	DN 40
~59.6 mm / 2.375"	2 inch	DN 50
~73.0 mm / 2.875"	2½ inch	DN 65

Tip: Your OD might not be an exact match (say 1.875"). That's fine, anything close means it's a 1½" pipe.

Schedule 40 vs Schedule 80

This only refers to pipe wall thickness, not the pipe's nominal size.

Schedule 40

Standard wall thickness. Used in most low-pressure jobs, like spa plumbing.

Schedule 80

Thicker wall thickness. Stronger against pressure and impact. Often used underground or where extra protection is needed.

Key point:

Pipes with the same NPS size have the same OD, but the ID is smaller in Schedule 80. That's why both can fit the same glued socket fittings.

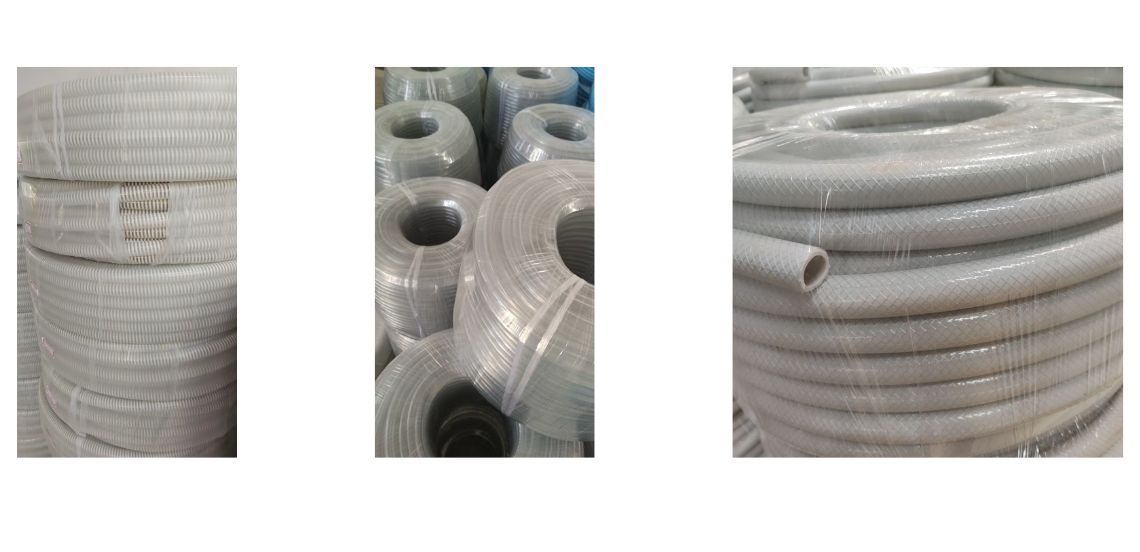

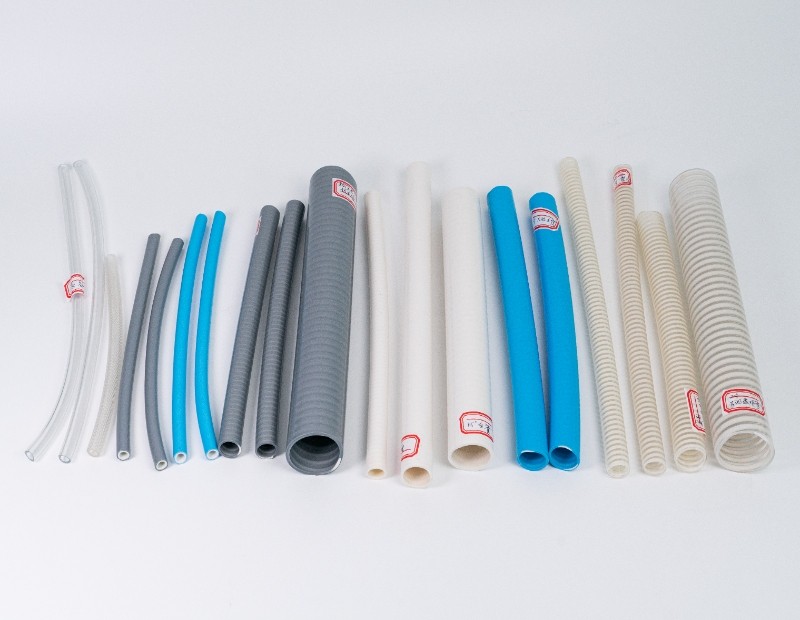

How to Identify Your Hose (for Right Replacement)?

1.Look at the hose

Flex PVC: White or beige, ribbed surface, feels stiff.

Vinyl hose: Clear or light color, smooth surface, thin and soft.

Reinforced hose: Has a mesh pattern layer, stiffer than standard flex.

2.Check markings (most accurate way)

Good hoses have info printed on the wall, like size, material, and pressure.

Example: "ID 2in PVC 100PSI" = 2" inside diameter, PVC material, rated 100 PSI.

If you see this, just match the same spec,no need to measure.

If the print is gone, use a tape measure to check both ID and OD to be sure.

How to Fix a Leaking Hot Tub Hose?

1. Leak at the hose clamp (most common)

How to check

Turn off the pump. Dry the clamp area with a towel.

Restart the pump and look for drops around the clamp.

You can also place a dry paper towel under it and check after 10 minutes. If it's wet, it's leaking.

How to fix

Small leak：Use a screwdriver, slowly tighten the clamp clockwise. Do it bit by bit, check after each turn, and stop once the leak is gone.

Bad leak or rusty clamp：Replace the clamp with a stainless-steel one. (Avoid iron clamps, they will rust and leak again.)

High-pressure lines：Use two clamps on each joint, screws set 180° apart, for better seal.

2. Leak from the Hose Itself (Wall Damage)

How to check

Look for cracks or holes on the wall. Run your fingers along the hose. If one spot feels soft or thin, it's likely worn out and about to fail.

How to fix

You must replace the hose. Don't use tape or sealant, because tape can't handle spa pressure and fails fast; sealant can dissolve in water, pollute it, and leak again in 1–2 weeks.

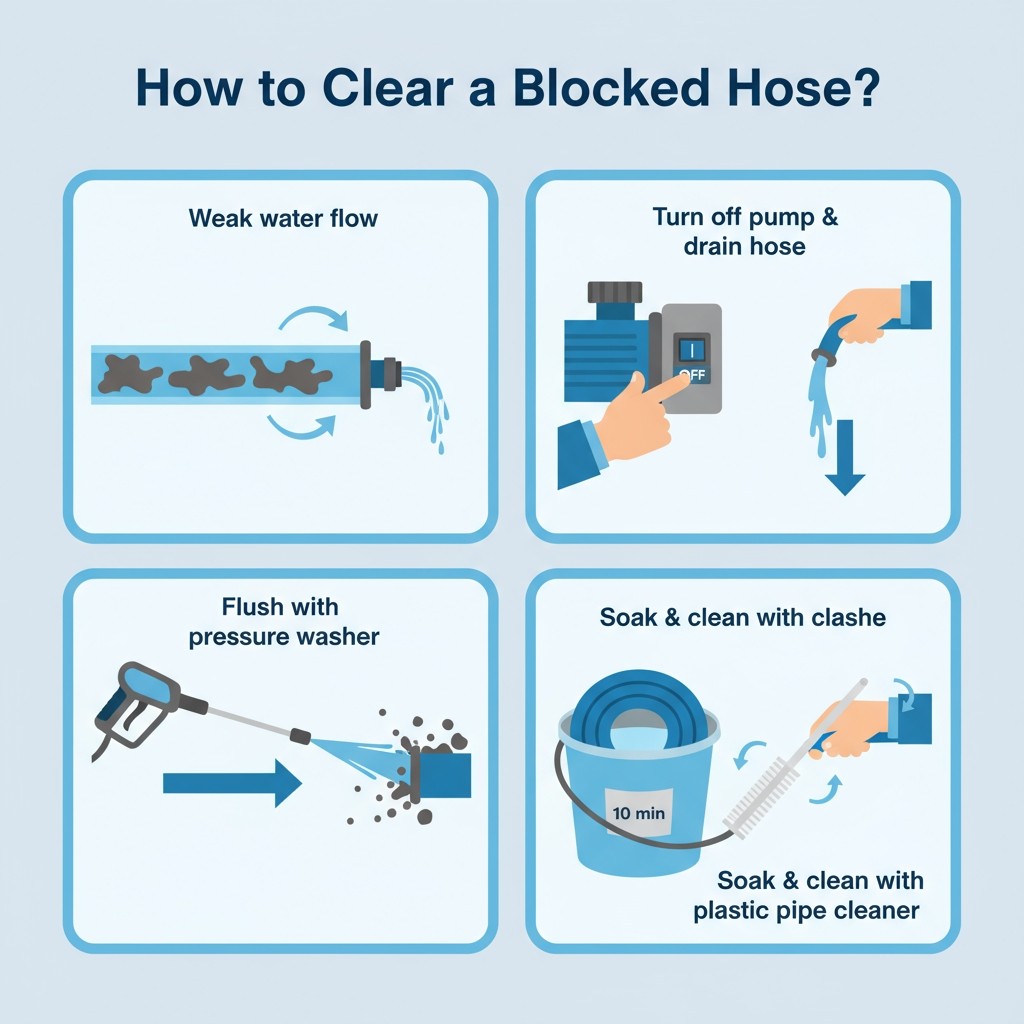

How to Clear a Blocked Hose?

A clog makes water flow weak, jets lose power, and if the pump runs dry, the motor can overheat and burn out.

Quick fix

Turn off the pump and drain the hose (avoid dirty water flowing back).

Remove the hose and flush with a pressure washer: spray from one end, dirt comes out the other.

If badly blocked (like chemical buildup): soak the hose in warm water for 10 min to soften it, then clear it with a plastic pipe cleaner (won't scratch the wall).

Q&A – Common Hot Tub Hose Questions

1. What's the best hose choice for a home hot tub?

For a regular home spa (200–500L, 1–2 pumps):

Use standard flex PVC (100 PSI) for main water lines, strong and affordable.

Use small vinyl hose for air lines, cheap and easy to install.

For ozone, a thin vinyl hose works fine.

This setup keeps costs low and works well for daily use.

2. How to make sure new hoses don't leak at the joints?

Besides using stainless-steel clamps, follow 3 rules:

1.Push the hose deep enough into the fitting (about 2/3 of its length).

2.Add a thin layer of spa-safe silicone sealant on the fitting before sliding the hose on.

3.When tightening the clamp, place the screw right over the joint(not on bare hose), to keep pressure even.

3. Do hot tub hoses need special care in winter?

Yes!

Cold temps can freeze leftover water, crack the hose, and cause leaks.

Correct way:

1.Drain all water (use air to blow out any left inside).

2.Remove hoses that can freeze (like outdoor lines) and store them indoors, dry.

3.For hoses you can't remove, wrap them with insulation to stop freezing.
