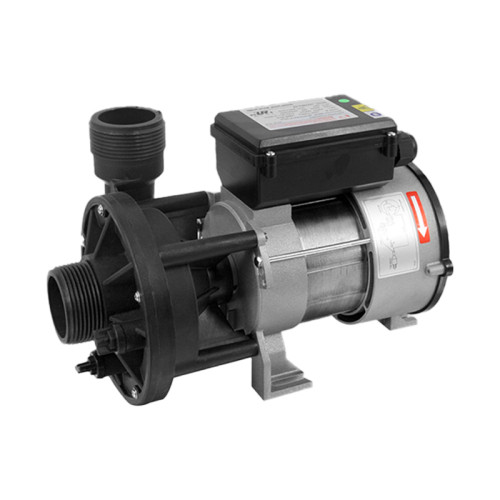

Bathtub Water Pump WBC Series Wholesale | Bulk Supply Hydrotherapy Recirculation Pump for Whirlpool Tub
Bathtub Water Pump WBC Series Wholesale | Bulk Supply Hydrotherapy Recirculation Pump for Whirlpool Tub
Model
WBC150

Item specifics

Thermal protector:
with thermal protector( single phase motor)
Insulation rating:
F
Medium temperature:
5~50℃
Ambient temperature:
≤40℃
Maximum working pressure:
0.3MPa
Certification:
UL Recognised Parts

Review

Description

Bathtub Water Pump Parameter

Model
Qmax(l/min)
Hmax(m)
V/Hz
Power(P1)
(Amp)
G·W(kg)
Packing siaze (mm)
kW
HP
WBC150
420
16.5
110-120/60
1.1
1.5
9.0
7.7
350*190*270

Bathtub Water Pump Performance Curve

Bathtub Water Pump Performance Curve

Bathtub Water Pump Dimension

Bathtub Water Pump Dimension

Bathtub Water Pump Exploded View

Bathtub Water Pump Exploded View
NO.
NAME
1
Tie-in Nut
2
Tie-in
3
O-Ring
4
Cross Recessed Pan Head Screw and Washer Assemblies
5
Plug
6
O-Ring
7
Pump Cover
8
O-Ring
9
Activity Ring
10
 Impeller
11
Mechanical seal
12
 Pump Casing
13
 Motor

Bathtub Water Pump Applications

Bathtub Water Pump Applications
