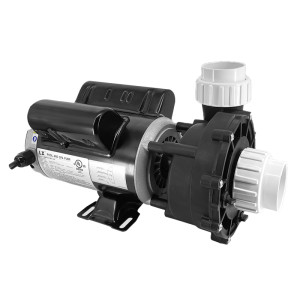

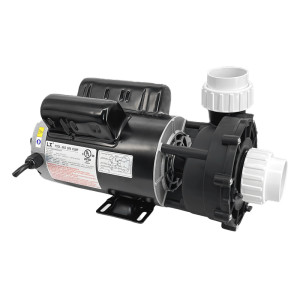

Spa Water Pump WP500 Series | Quiet Adjustable SPA Pump with Variable Frequency Control | Bulk Supply from Factory
- Model
- WP500-Ⅰ, WP500-Ⅱ
Item specifics
- Thermal protector:
- with thermal protector( single phase motor)
- Insulation rating:
- F
- Protection class:
- IP55
- Medium temperature:
- 5~50℃
- Ambient temperature:
- ≤50℃
- Maximum working pressure:
- 0.3MPa
- Certification:
- CE ; TUV
Review
Description
Spa Water Pump Introduction
WP500 series pump cover can be rotated at 12:00, 9:00, 3:00, 1:30 location, which is convenient for pipeline installation.
Spa Water Pump Parameter
Spa Water Pump Performance Curves
Spa Water Pump Overall Dimensions
Spa Water Pump Exploded View
NO. | NAME | |||
1 | Tie-in Nut | |||
2 | Tie | |||
3 | O-Ring | |||
4 | Hexagon Screw | |||
5 | O-Ring | |||
6 | Cross Raised Head Screw Assembling | |||
7 | Pump Cover | |||
8 | O-Ring | |||
9 | Impeller | |||
10 | Mechanical seal | |||
11 | Pump Casing | |||
12 | Plain Washer | |||
13 | Plastic Spacer | |||
14 | Motor | |||
Spa Water Pump Product Applications
