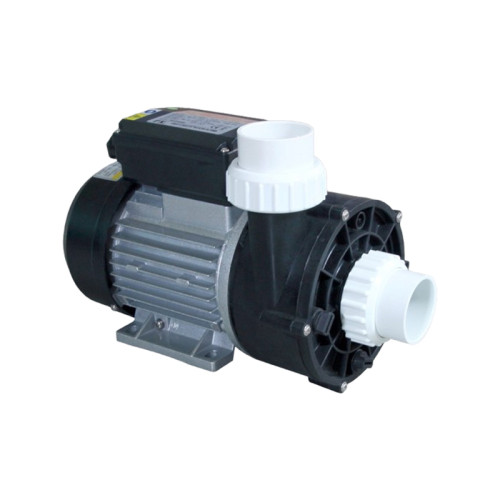

Spa Circulation Pump WTC50M Series Wholesale | High-flow Circulation Pump with Low Noise | Affordable B2B Sourcing
- Model
- WTC50M(220-240/50) ； WTC50M(220-240/60)
Item specifics
- Thermal protector:
- with thermal protector (single phase motor)
- Insulation rating:
- F
- Medium temperature:
- 5~50℃
- Ambient temperature:
- ≤50℃
- Maximum working pressure:
- 0.3MPa
- Certification:
- CE;TUV;UL;RCM
Review
Description
Spa Circulation Pump Iintroduction
The pump body can be rotated at 12, 9, or 3 o'clock position for easy piping installation.
Spa Circulation Pump Parameters
Spa Circulation Pump Performance Curves
Spa Circulation Pump Dimensions
Spa Circulation Pump Exploded View
NO. | NAME | |||
1 | Tie-in nut | |||
2 | Tie | |||
3 | O-ring | |||
4 | Plug | |||
5 | O-ring | |||
6 | cross recessed pan head screw andwasher assemblies | |||
7 | Pump Cover | |||
8 | lmpeller | |||
9 | Mechanical seal | |||
10 | O-ring | |||
11 | Pump Casing | |||
12 | Screw | |||
13 | Motor | |||
Spa Circulation Pump Applications
